CScope Magnetometer M-SCAN

Product Code: CSCM-SCAN

Price

£699.00 ex. VAT £838.80 inc. VAT

Available In 3-7 Days

The M-SCAN Magnetometer can locate deeply buried ferrous objects such as manholes, septic tanks, valve boxes, line identification markers, survey and boundary marker pegs and cast iron gas and water pipes and joints.

Key Features:

High Sensitivity
Excellent Detection range
50/60 Hz warning
Field polarity indicator
Erase feature
No response to aluminium, brass or copper
Visual and audible signal strength
Multi adjustable sensitivity
Easy-to-use keypad
One-handed operation
Low battery warning
Long battery life – stated
Easy access battery compartment
Rechargeable batteries option
Robust, lightweight and ergonomic construction
Carry case as standard
IP65 / IP66

The M-SCAN detects ferrous (magnetic) metals at a much greater depth than conventional metal detectors. It is capable of detecting objects up to 5m deep, depending on signal strength.

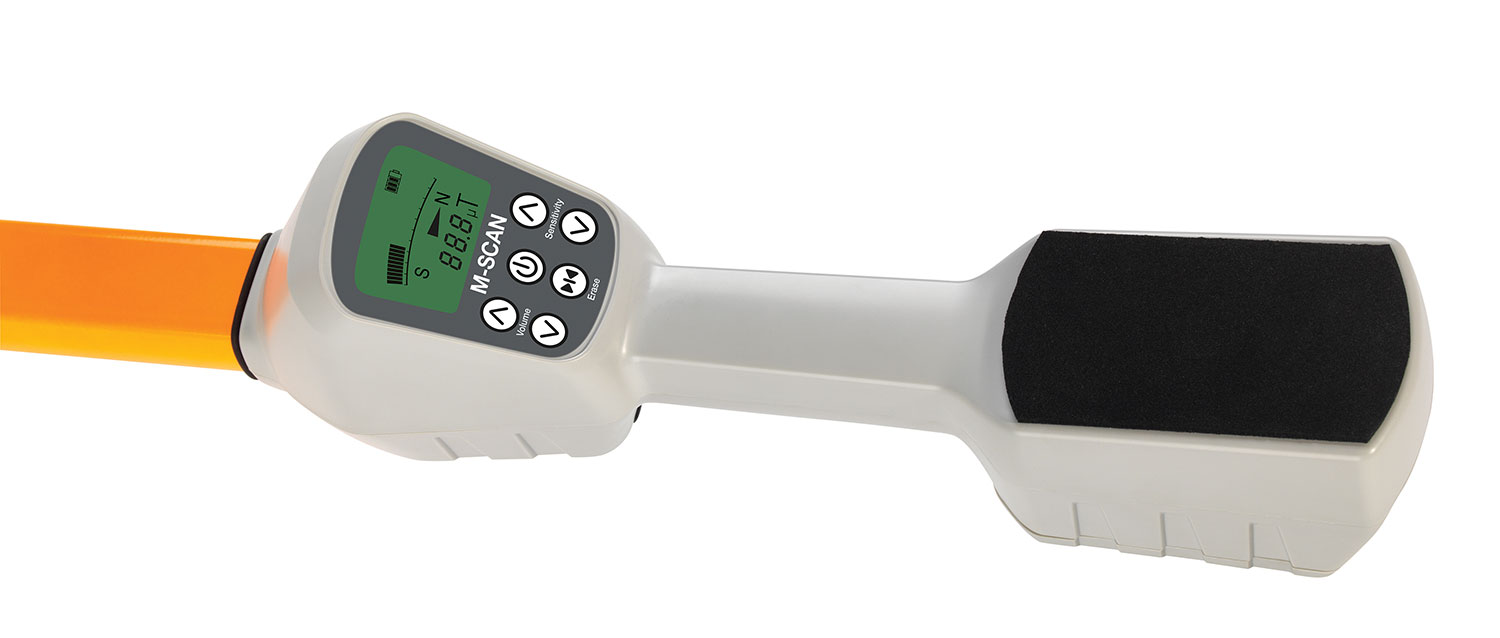

The M-Scan is a battery powered Locator manufactured in heavy-duty, high-impact ABS with a robust aluminium sensor tube. It has a large, easy-to-read LCD, showing battery level, signal strength and polarity indication backed up with a clear audible response that ensures that the target can be quickly located and identified. Simple one-touch controls for volume and sensitivity are ergonomically positioned and the unique moulded case design with in-built armrest means that the M-Scan can be used for long periods without undue fatigue.

CScope M-SCAN Magnetometer
Detection Depth Range	5 m (dependent on site conditions)
Mains/ Line Detection	Visual warning of 50-60 Hz electric field
Erase Function	Background masking function allowing detection work near ferrous material
Sensitivity	4 levels of adjustment
Detection Resolution	20nT
Controls	Volume, Sensitivity, On/Off and Erase
Display	Numeric indication of signal amplitude, Multi segment bar graph, Polarity indicator, Zero field crossing indicators, Battery level and 50-60 Hz electric field warning
Sound	8 volume levels, including mute. Frequency (pitch) varies with signal amplitude In-built loudspeaker plus 3.5mm jack socket for standard headphones
Sensor Spacing	0.5m
Overall Length	1.09m
Sensor Tube Length	0.73m
Construction	Case: Heavy duty high impact ABS (Water and dust resistant to IP65) Sensor Tube: Epoxy sandwich coated aluminium (Waterproof and dust resistant to IP66) Tip Protector: Heavy duty thermoplastic elastomer
Batteries	Eight 1.5V Cells, type AA, LR6, or equivalent. Alkaline cells recommended Compatible with NiMH rechargeable batteries 100 hours battery life typical intermittent use 4 segment visual bar Battery Indicator
Weight	1.3 kg (with batteries)
Operating Temperature	-20 to +50ºC
Storage Temperature	-30 to +70ºC (batteries should be removed for storage at extremes of temperature)
Carry Bag	Protective shoulder carry case
